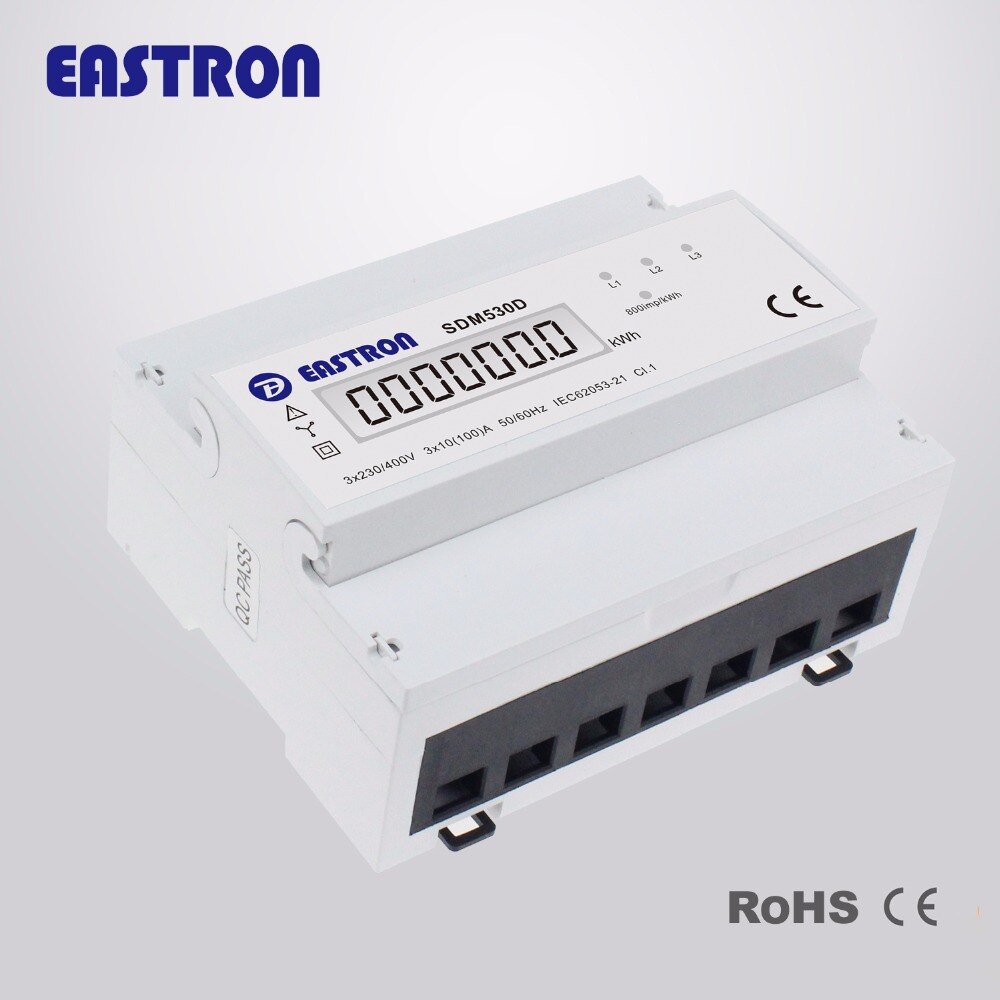

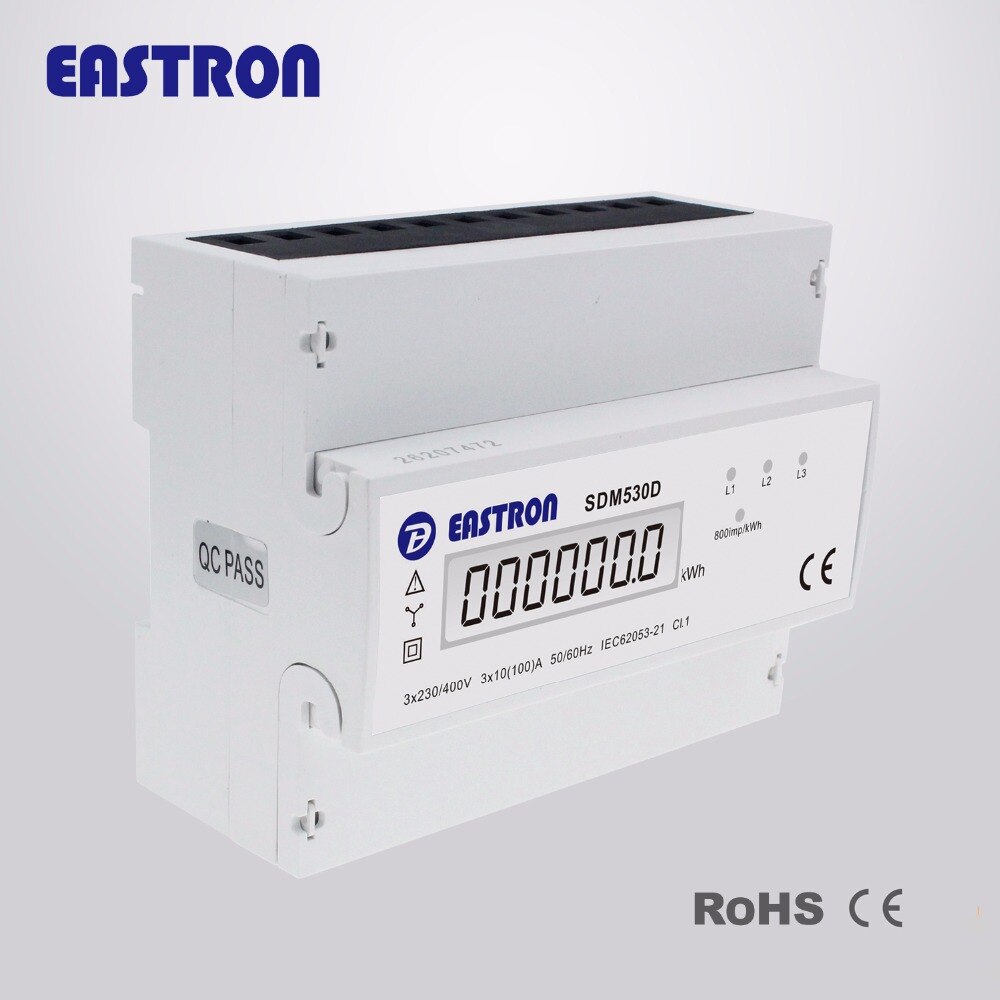

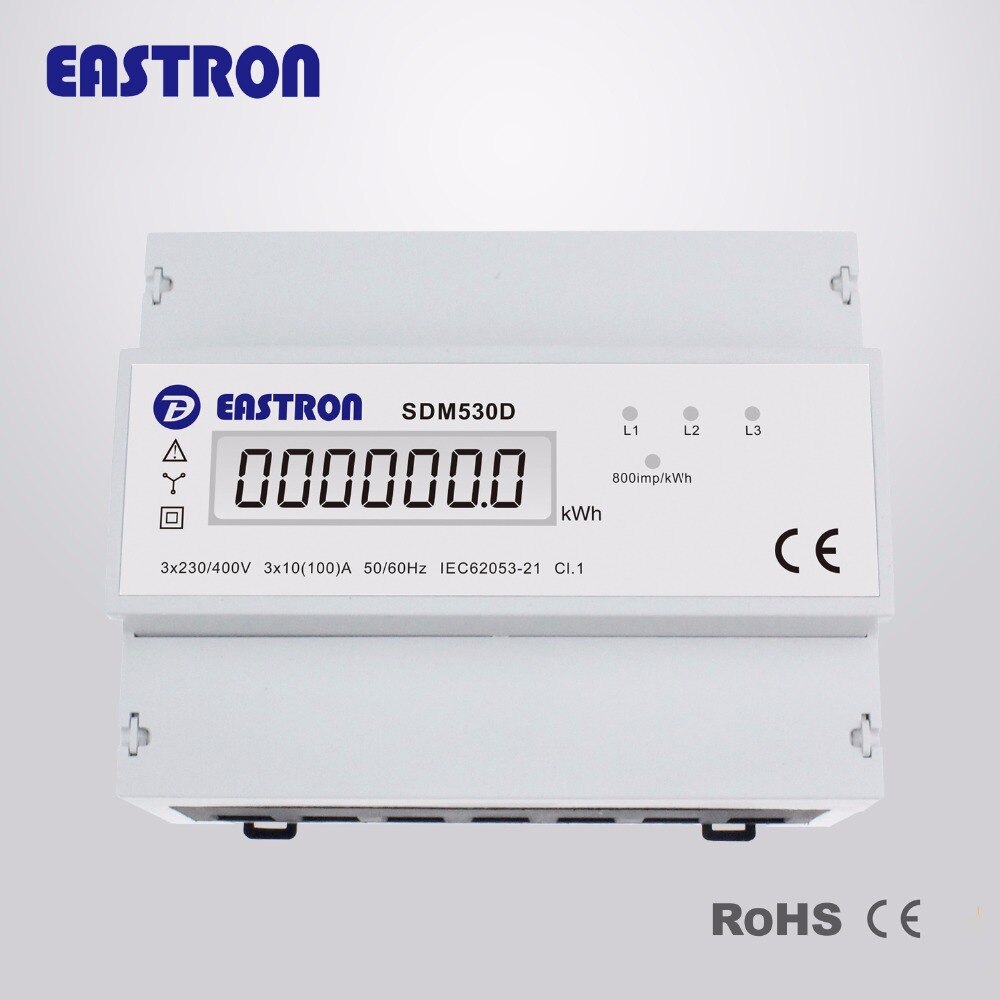

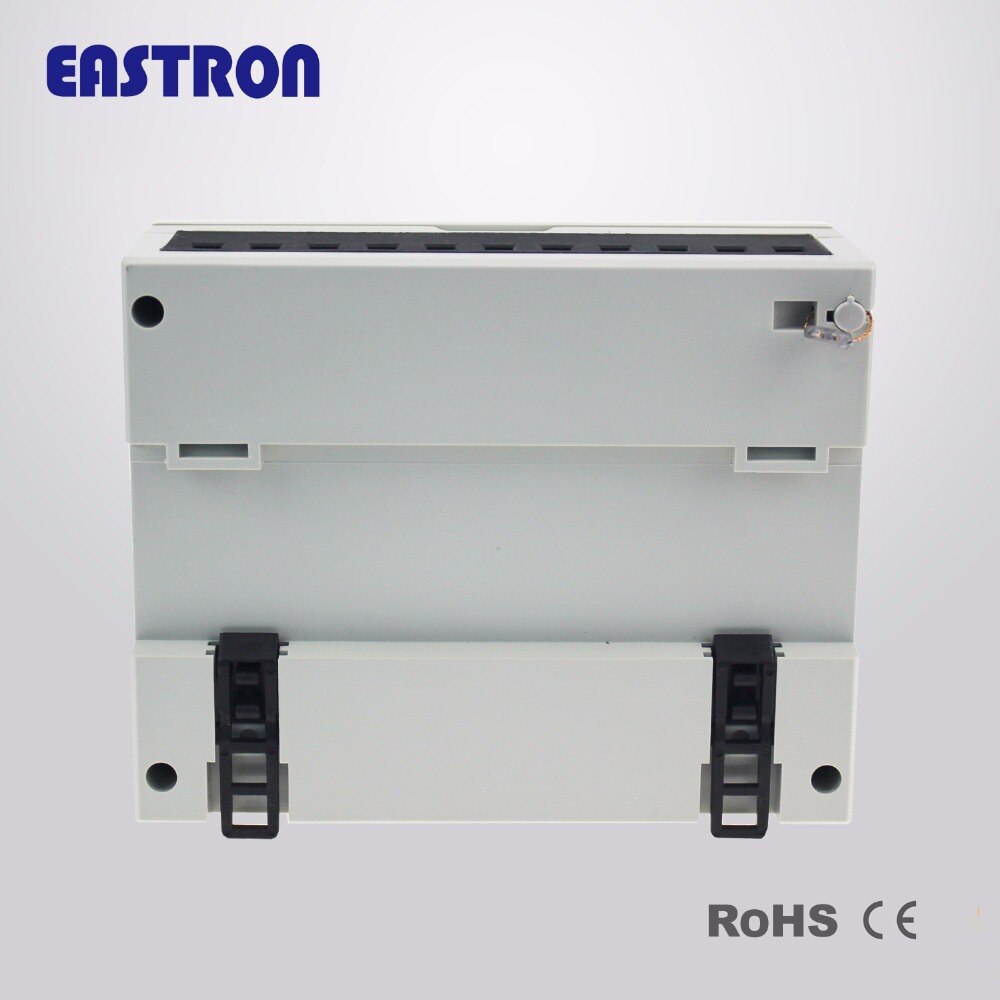

SDM530D 10(100)A, 220/230V, Three Phase Four Wire Din Rail Energy Meter, Pulse Output,measuring kwh, CE approved
Specifications:
- Starting current: 40mA
- Standard: IEC62053-21
- Rated Voltage: 230V
- Pulse output: Passive type
- Power Supply: AC
- Phase: Three Phase
- Output Voltage: 230/400(3~)
- Operating Temperature: -25- +55
- Model Number: SDM530D
- Min. Current: 0.5A
- Measuring Energy Range: 999999.9kwh
- measurements: kwh
- Max Operating Current: 80A - 99A
- Max. Current: 100A
- DIY Supplies: Electrical
- Display Type: Digital Only
- Dimensions: 126*130*65mm
- Brand Name: YISITONG
- Approval: CE
- Accuracy Class: class1.0
