Specifications:

• Starting current: 20mA
• Rated Voltage: 220V
• Pulse output type: Passive type
• Pulse constant: 1000imp/kwh
• Protocol: Modbus RTU
• Power Supply: AC
• Phase: Single Phase
• Output Voltage: 220/230V
• Origin: CN(Origin)
• Operating Temperature: -25 to +55

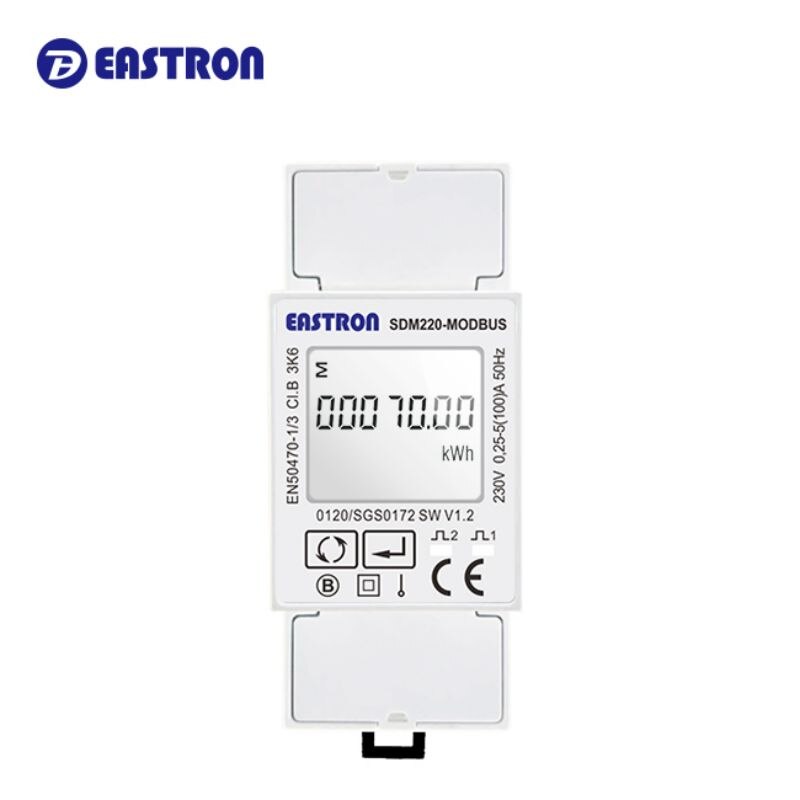

• Model Number: SDM220Modbus
• Min. Current: 0.25A
• Measuring Energy Range: 99999.99kwh
• Max Operating Current: 50A - 79A
• Max. Current: 100A
• International standard: IEC62053-21
• installation type: din rail mounted
• DIY Supplies: ELECTRICAL
• Display Type: Digital Only
• Dimensions: 90*62*36mm
• Communication port: RS485
• Certification: CE
• Brand Name: YISITONG
• Accuracy Class: class1.0
• Certification: RoHS
