Specifications:

• Weight: 122g
• Usage: Timer Switch
• Type: Mini
• Theory: Digital
• Temperature Range: -10~50 C
• Set: ON and OFF duration time
• Power Supply: 110V,230V,12V,24V
• Power consumption: <2W
• Poles: 2
• Output: NO. and NC. contacts

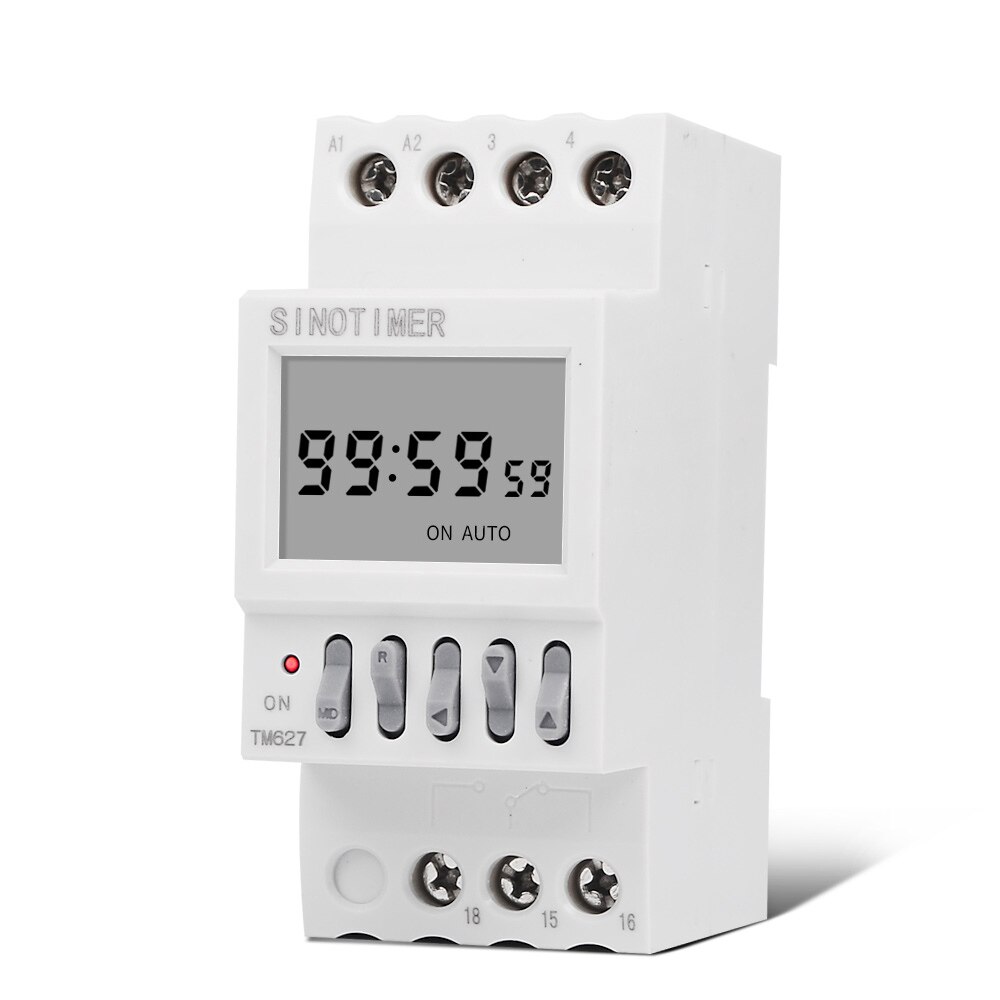

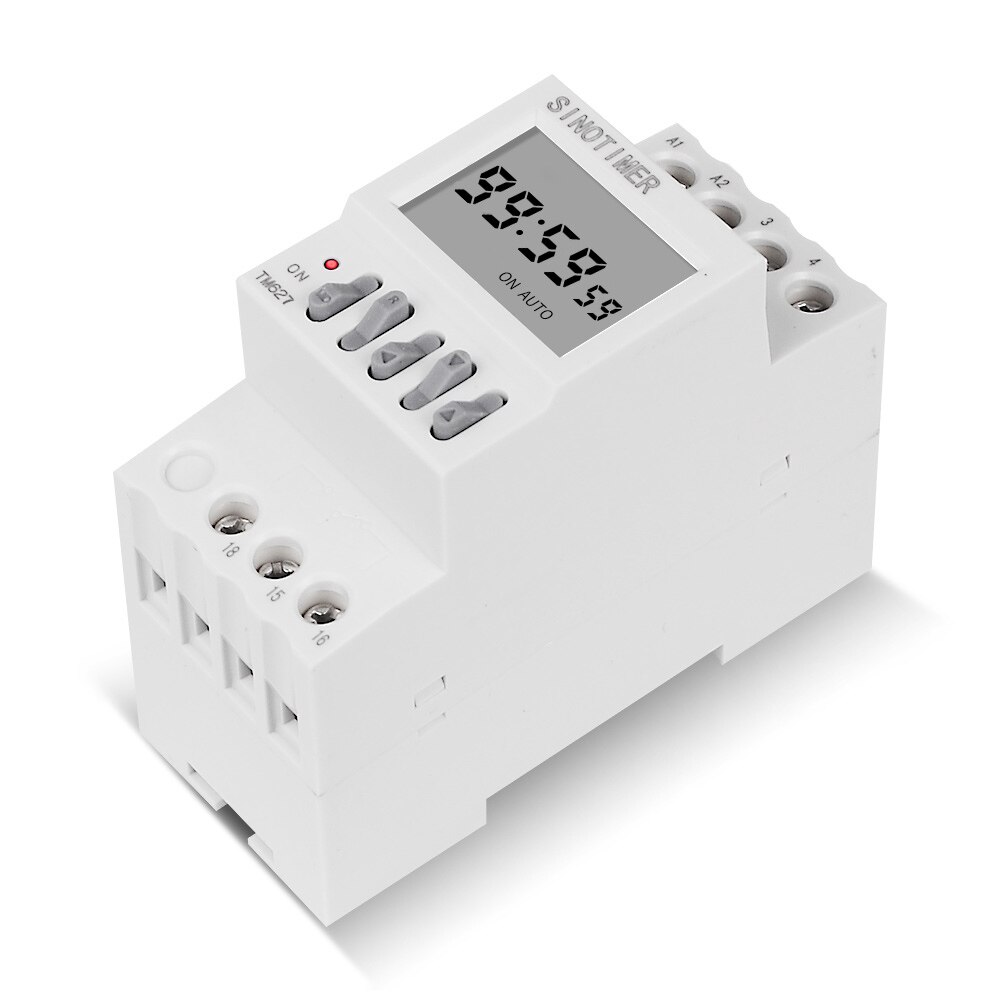

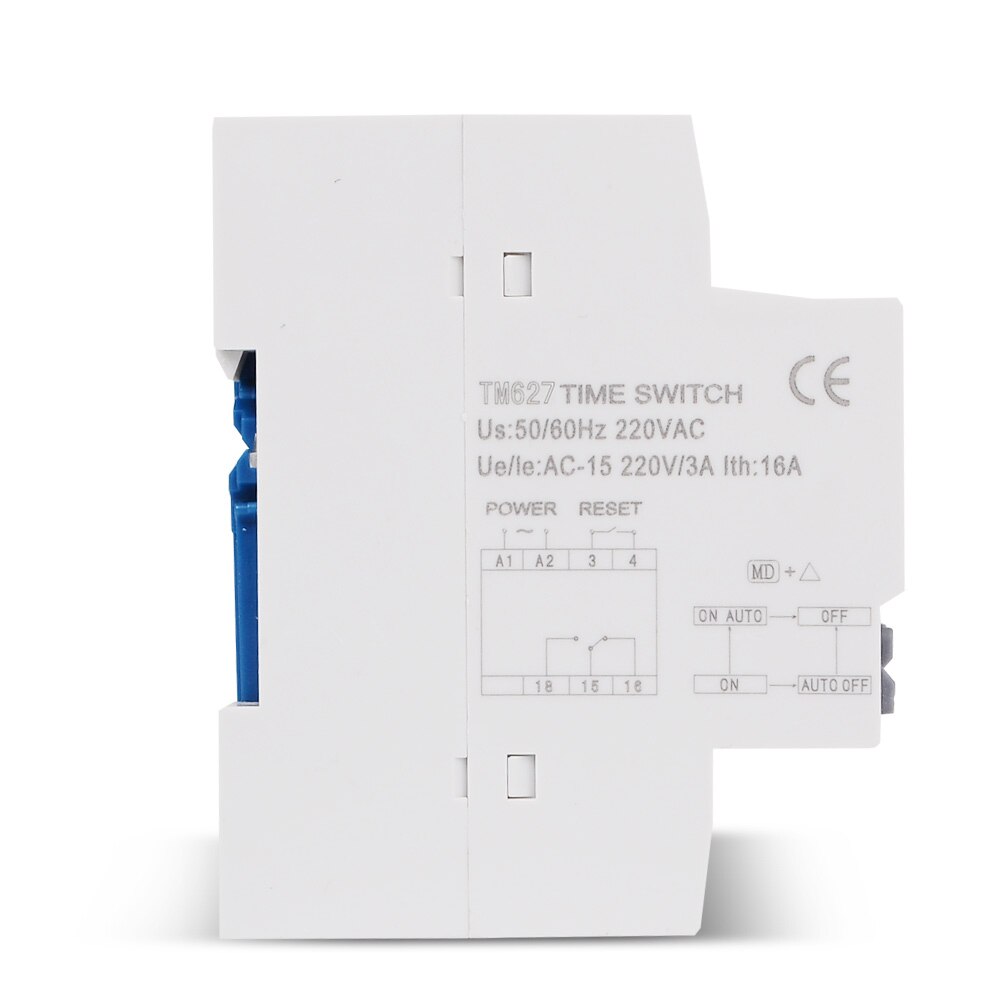

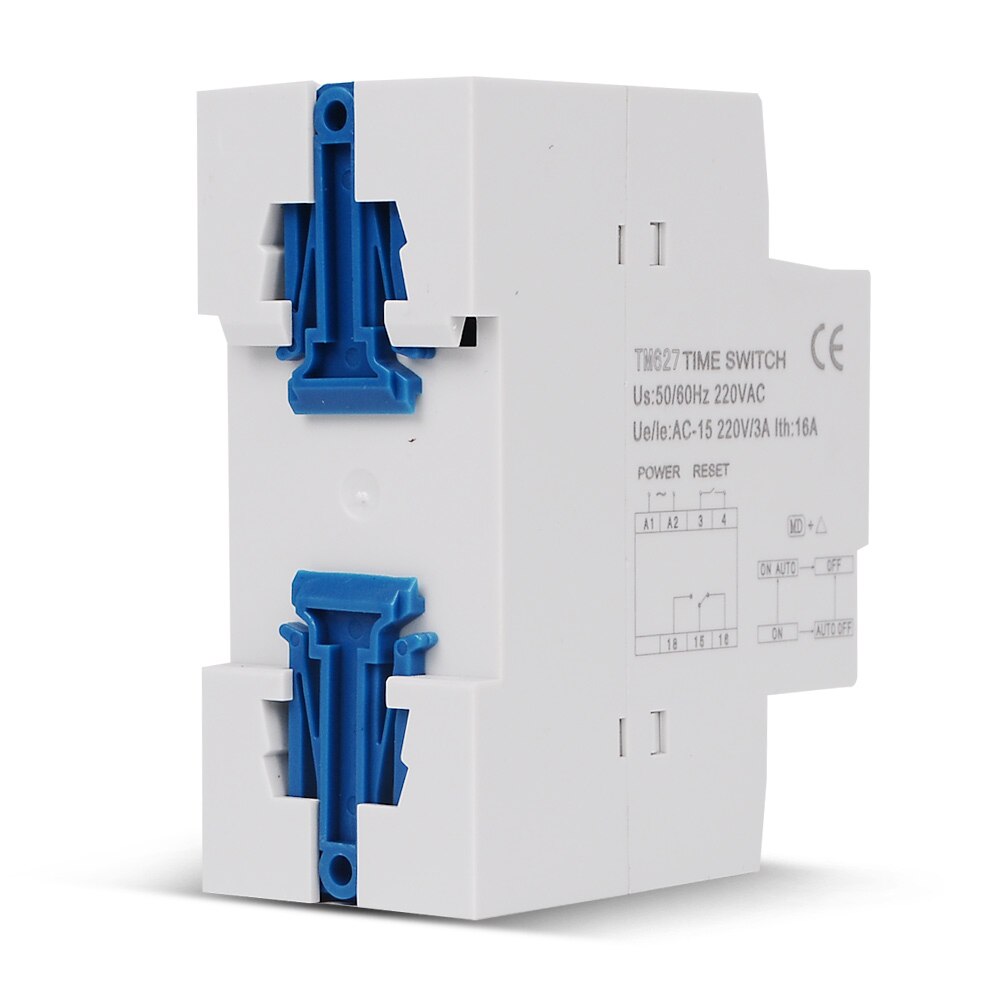

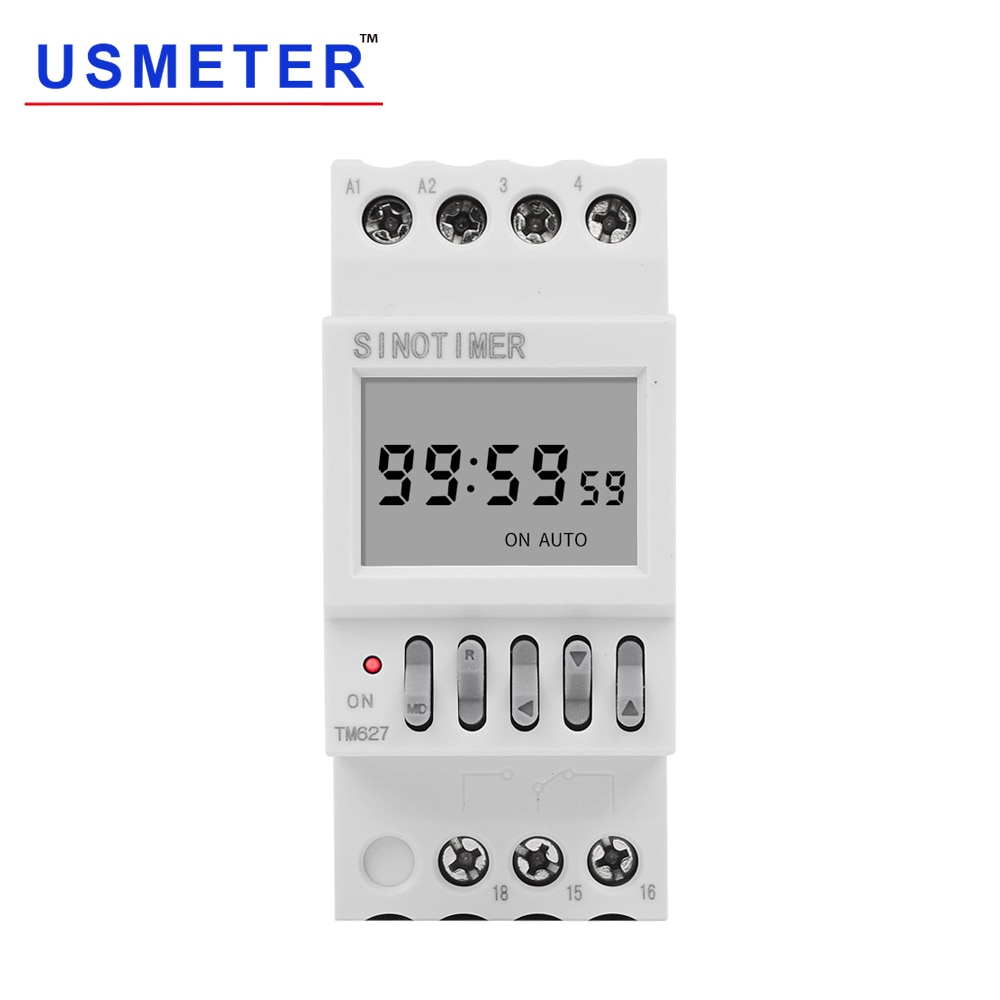

• Model Number: TM627
• Mini interval: 1 Second
• Mechanical life: >30000 times
• Max interval: 99hour 59min 59seconds
• Max. Current of Output Load: 16A
• Humidity: <95%
• Electric endurance: >10000 times
• Dimensions: 36*68*82 mm
• Characteristic 3: 1 group Cycle ON/OFF
• Characteristic 2: Circular Timer
• Characteristic 1: Cycle Timer
• Certificates: IEC ,GB
• Brand Name: SINOTIMER
• Battery: Inside
