Specifications:

• rated phase voltage:4.44V: Motor Length:28mm
• Output shaft length:20mm: Step Angle(degrees):1.8 degree

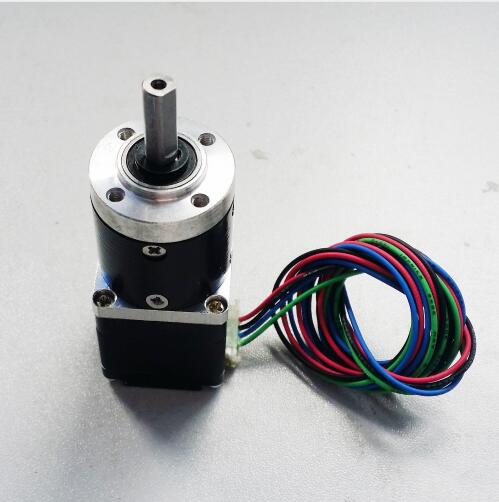

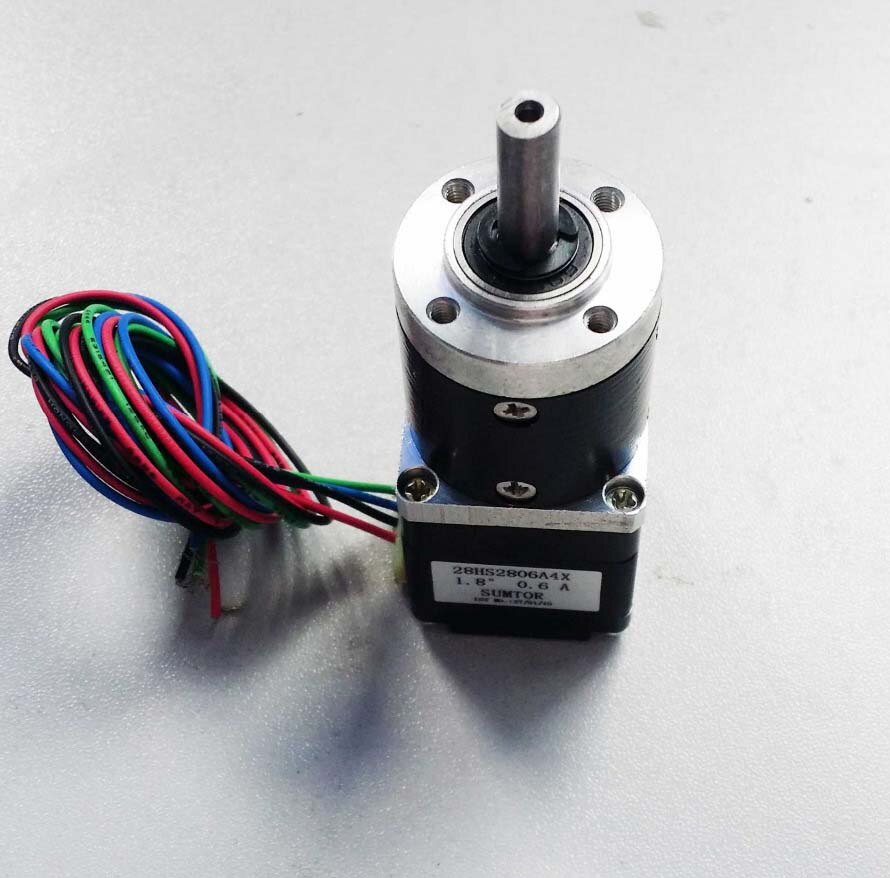

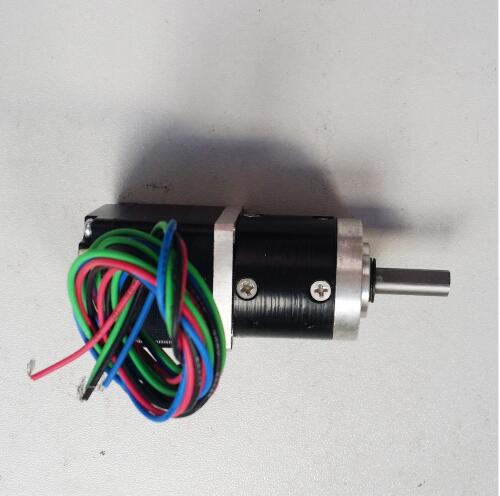

• Model Number: PLANETARY STEPPER MOTOR 28HS2806A4X-100
• Gearing Arrangement: Planetary
• Gearbox length:49mmStepper Frame size:NE: Stepper Frame size:NEMA 11, 28mm
• Gear ratio:100:1: Output shaft diameter:6mm
• Certification:ROHS,CE: Holding Torque:4.5N.cm
• Ambient Temperature:-10C~+90C: Storage Temperature:-30C~+60C
