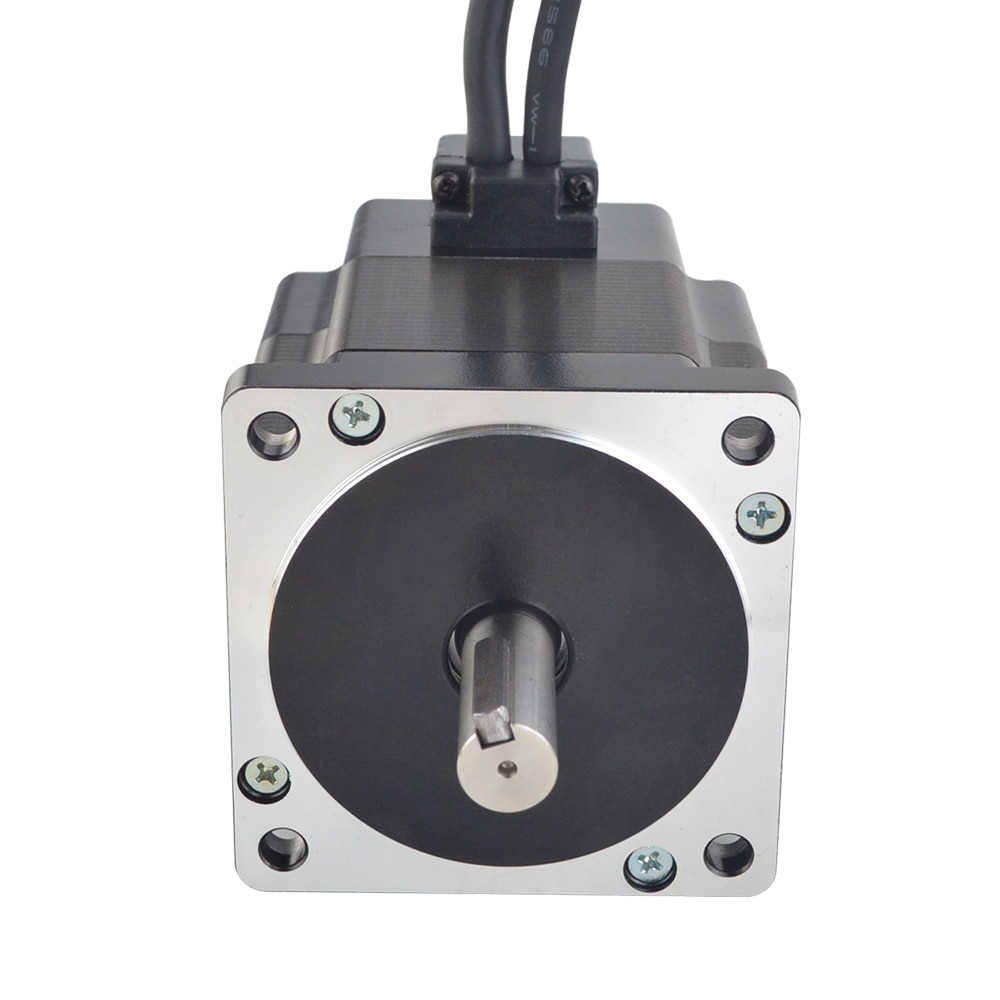

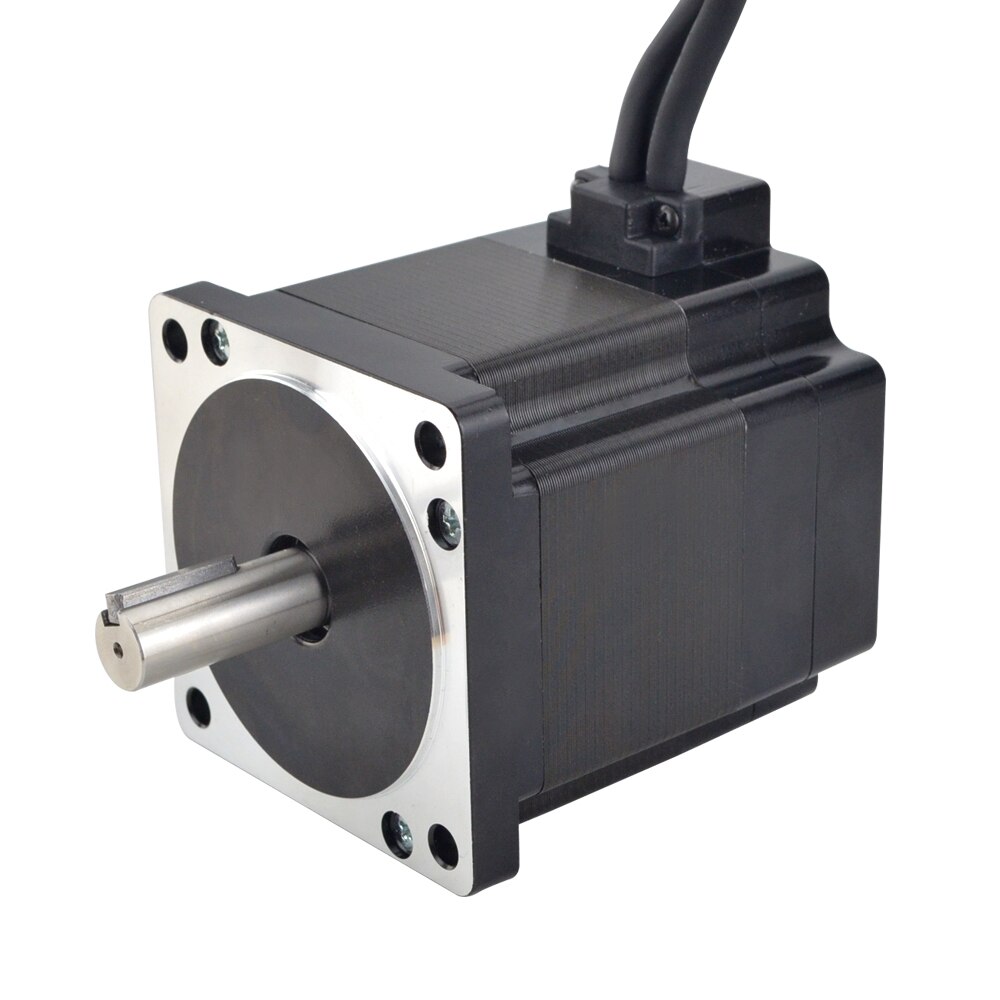

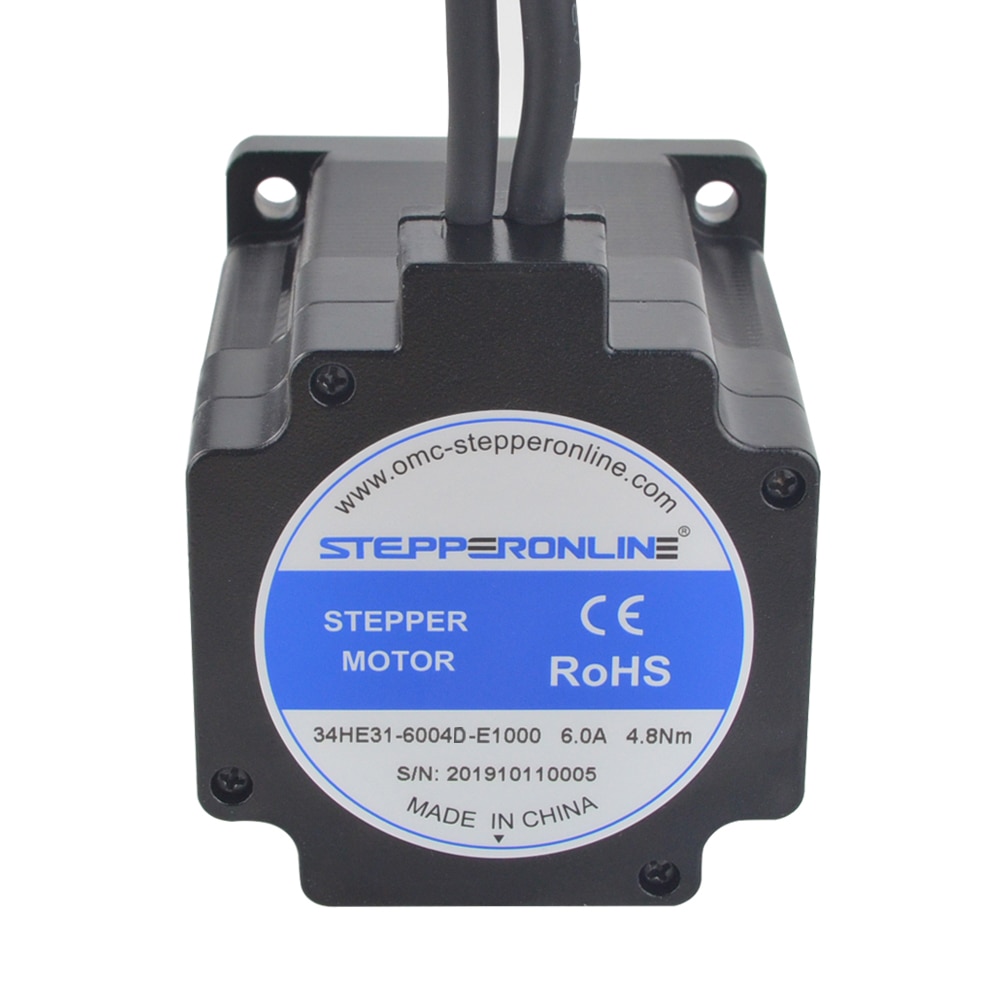

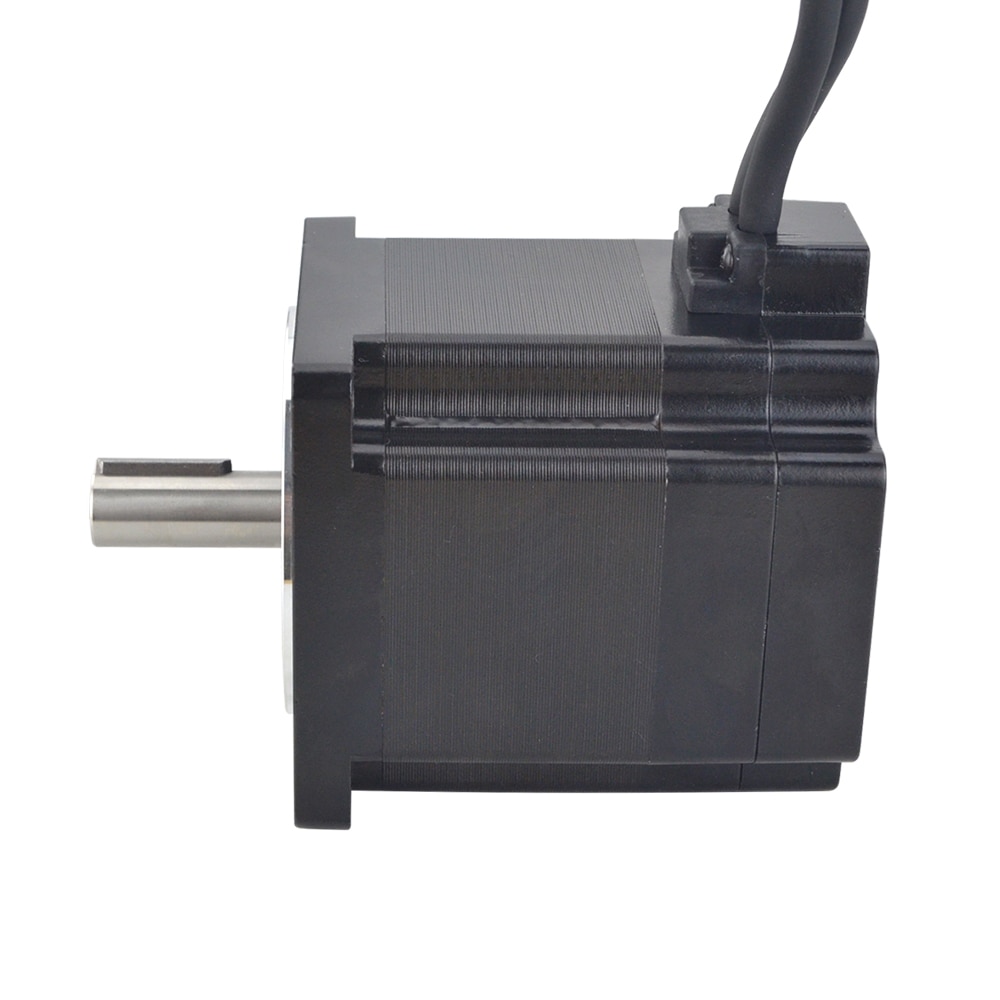

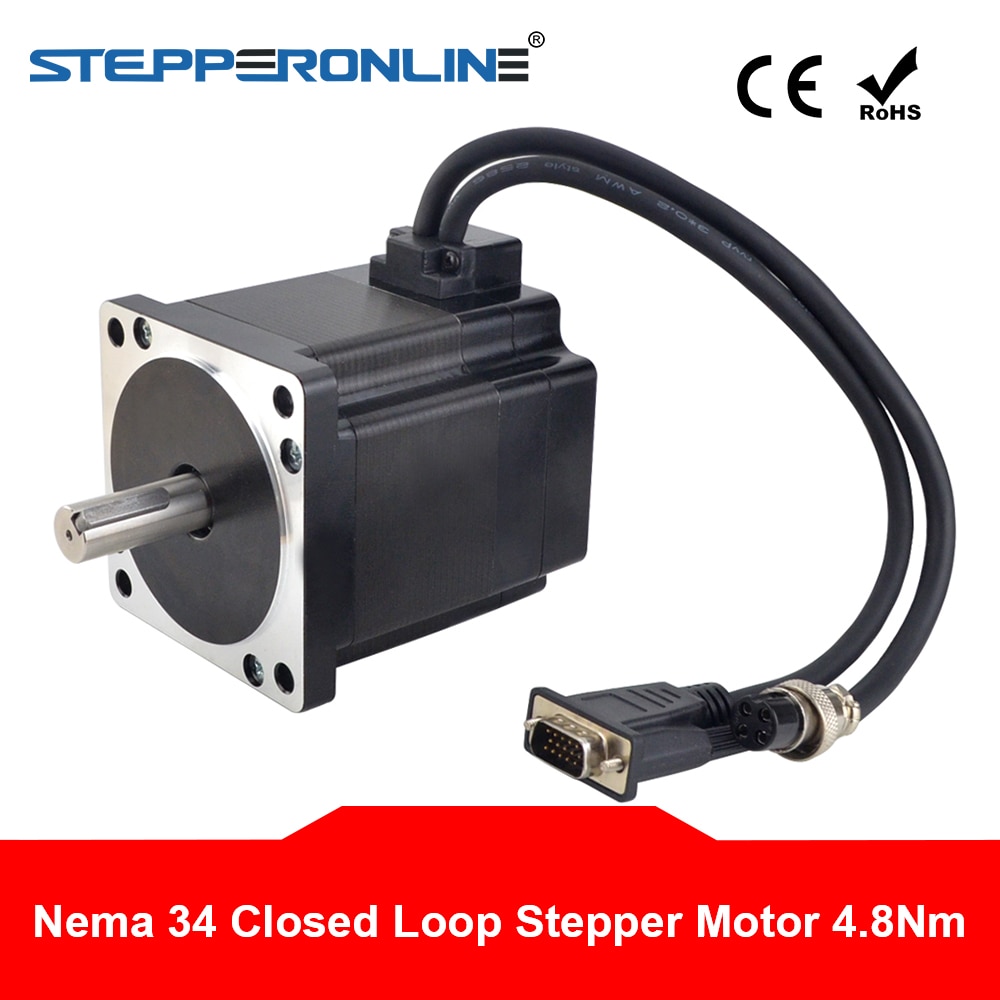

Nema 34 Closed Loop Stepper Motor 4.8Nm Encoder 1000CPR 6A 2 Phase 4-lead 86 CNC Stepping Motor 14mm Shaft
Nema 34 Closed Loop Stepper Motor 4.8Nm Encoder 1000CPR 6A 2 Phase 4-lead 86 CNC Stepping Motor 14mm Shaft
Nema 34 Closed Loop Stepper Motor 4.8Nm Encoder 1000CPR 6A 2 Phase 4-lead 86 CNC Stepping Motor 14mm Shaft
Nema 34 Closed Loop Stepper Motor 4.8Nm Encoder 1000CPR 6A 2 Phase 4-lead 86 CNC Stepping Motor 14mm Shaft
Nema 34 Closed Loop Stepper Motor 4.8Nm Encoder 1000CPR 6A 2 Phase 4-lead 86 CNC Stepping Motor 14mm Shaft

Nema 34 Closed Loop Stepper Motor 4.8Nm Encoder 1000CPR 6A 2 Phase 4-lead 86 CNC Stepping Motor 14mm Shaft

SKU: AC-W5JYV3NDX3Q

Price

€204.79

Free shipping

MSRP:€249.79
18%
discount

Advantages

  • Free shipping
  • 100 days returns
  • Low prices

Nema 34 Closed Loop Stepper Motor 4.8Nm Encoder 1000CPR 6A 2 Phase 4-lead 86 CNC Stepping Motor 14mm Shaft

Specifications:

  • Warranty: 1 Year
  • Type: Hybrid
  • Step Angle(degrees): 1.8 deg
  • Size: 86 x 86 x 79mm
  • Shaft Length: 37 mm
  • Shaft Diameter: 14 mm
  • Phase Resistance: 0.42 ohms± 10%
  • Phase: 2
  • Model Number: 34HE31-6004D-E1000
  • Lead Length: 300 mm
  • Keyway Shaft Length: 25 mm
  • Inductance: 3.5 mH ± 20%(1KHz)
  • Holding Torque: 4.8 Nm(679.87oz.in)
  • Current / Phase: 6.0 A
  • Certification: ROHS
  • Certification: ISO
  • Certification: ce
  • Brand Name: STEPPERONLINE
