Specifications:

• Certification: NONE
• CNC or Not: Normal
• Diameter of blanking hole: 27mm
• Die hole diameter: 12.7mm

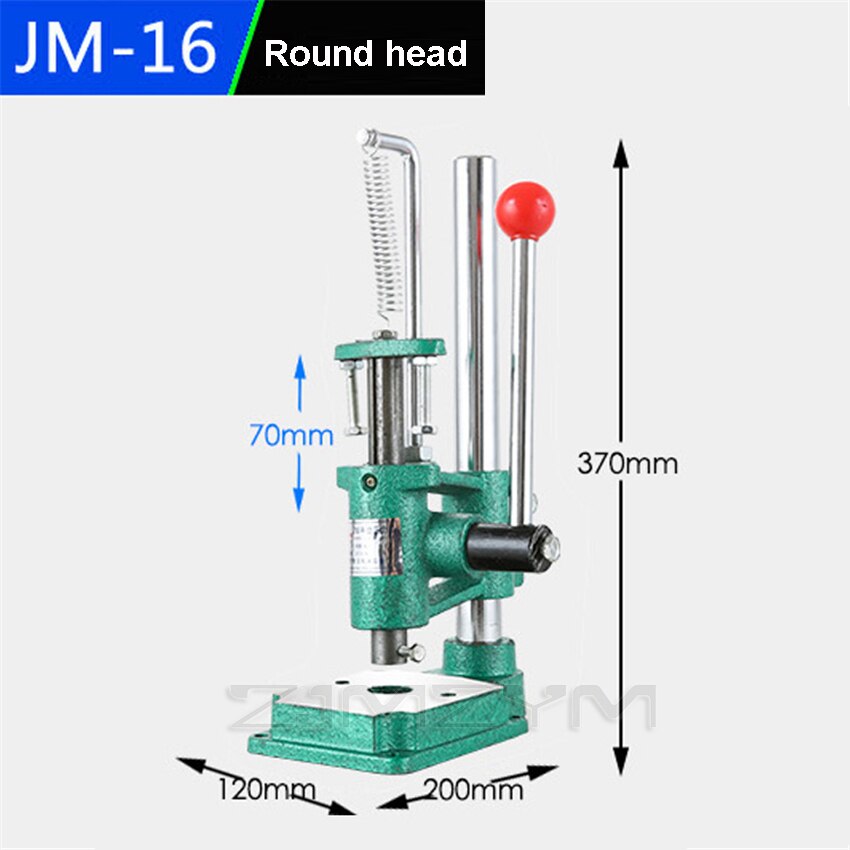

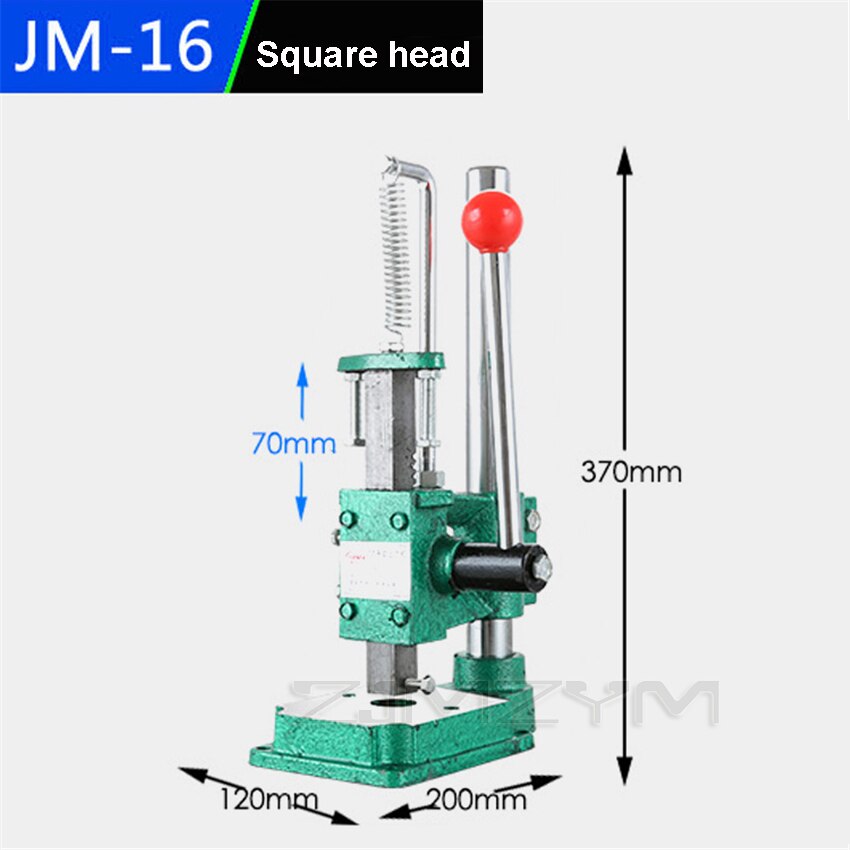

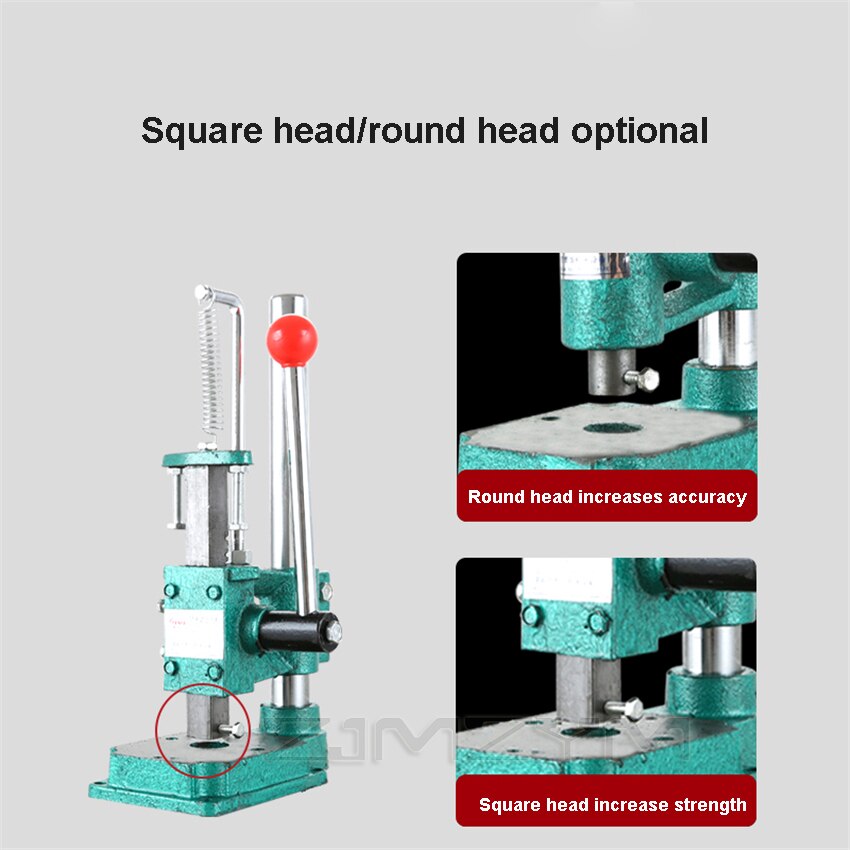

• Model: JM-16(Round head/square head)
• Model Number: JM-16

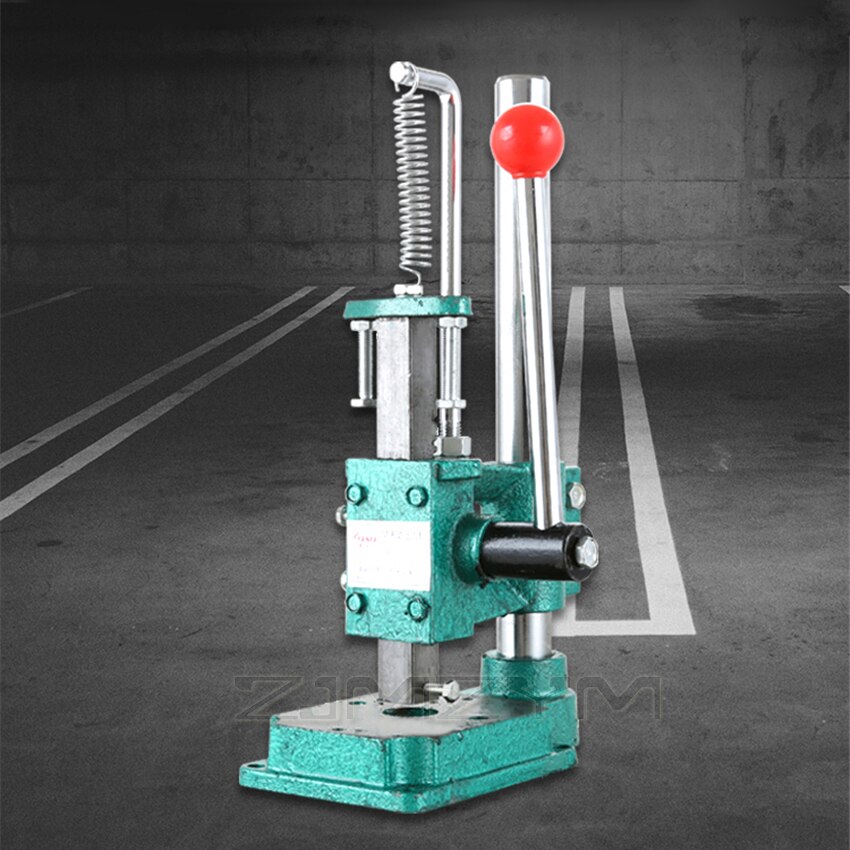

• Name: Desktop manual punching machine
• Origin: CN(Origin)
• Panel length: 125mm
• Panel mounting hole distance: 76mm (center hole distance)
• Panel screw hole distance: 10mm (M10 screw)
• Panel width: 103mm
• Power Source: Mechanical
• Product number: FC2196
• Slider stroke: 70mm
• Throat depth: 85mm
• Withstand pressure: 160kg
