Specifications:

• Working temperature: -40~85℃
• Warranty: 2 years
• Shell protection: IP68
• Response time: ≤50MS

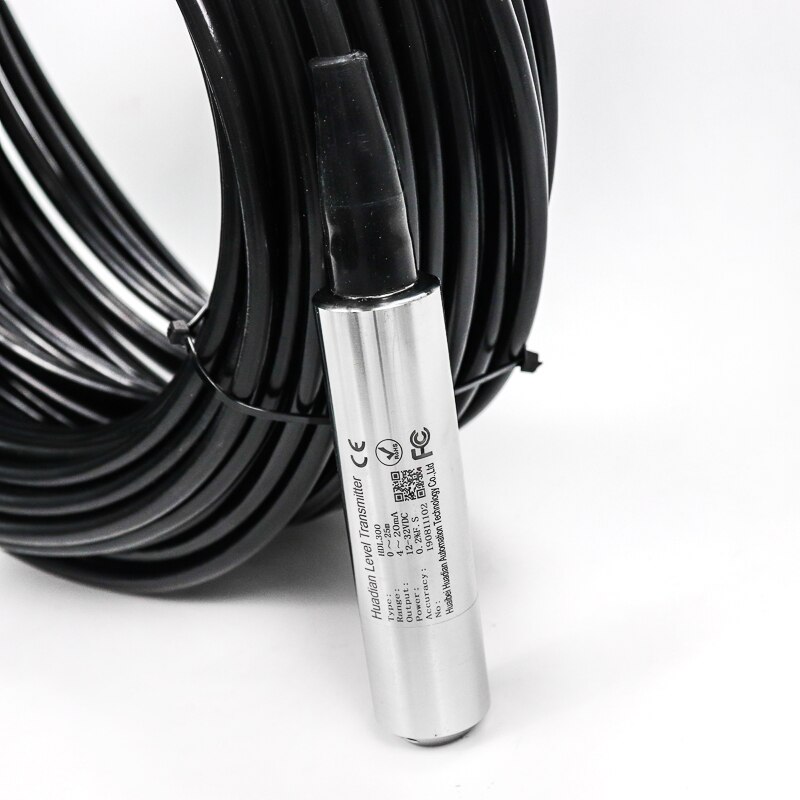

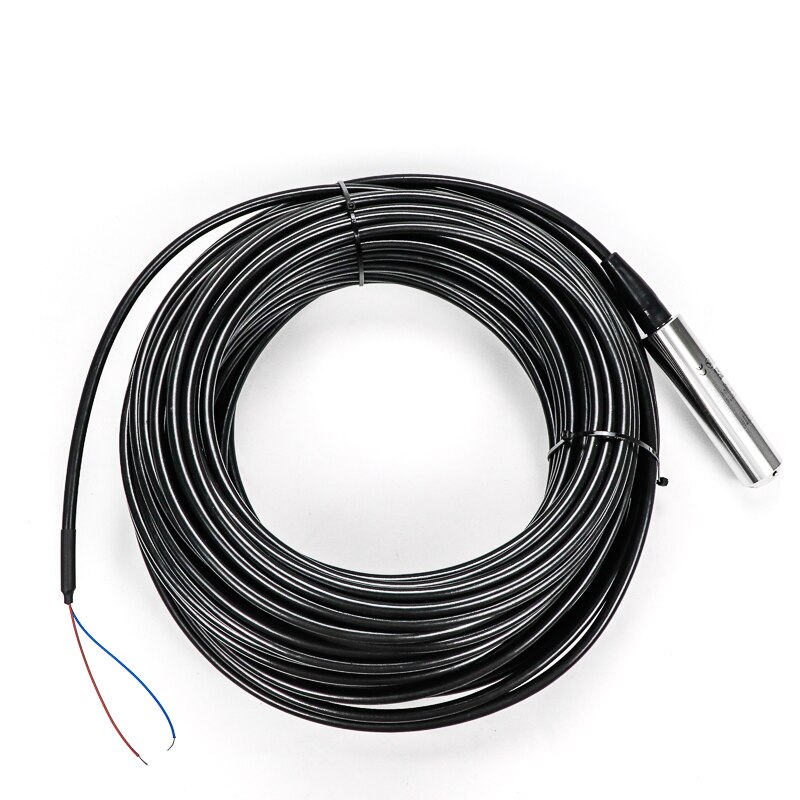

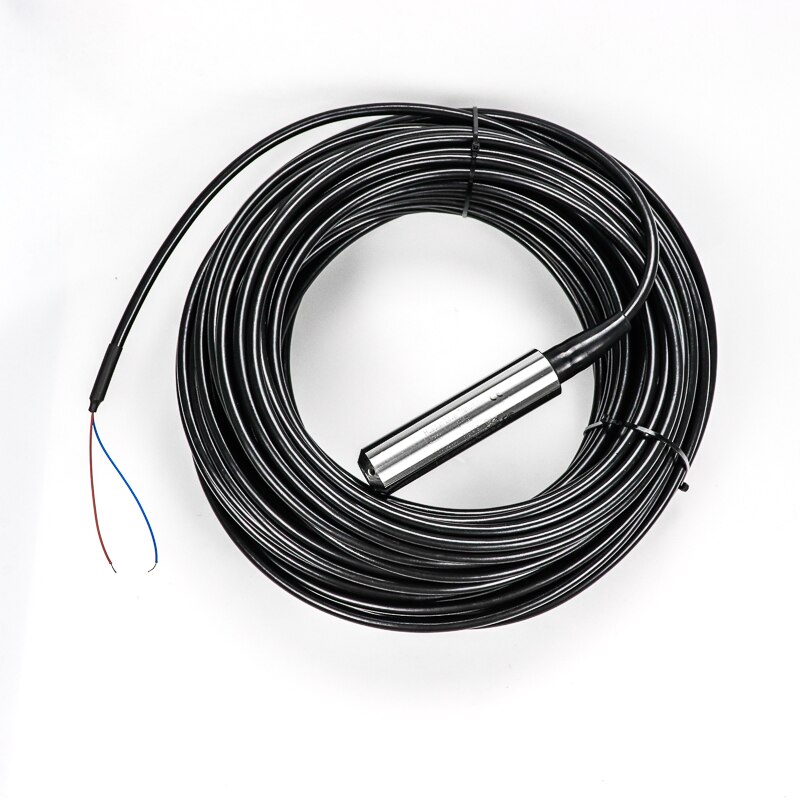

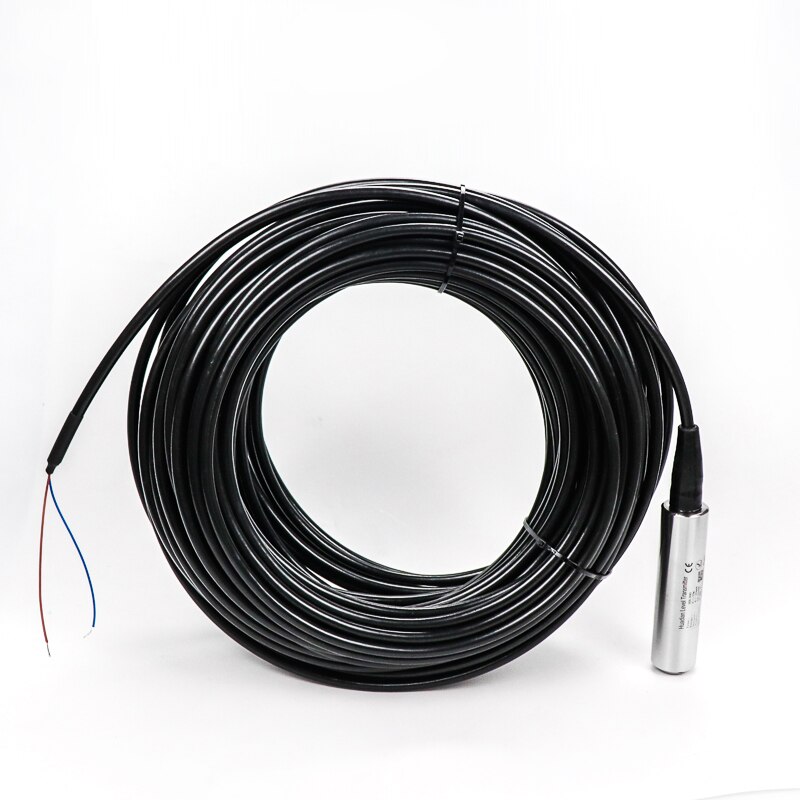

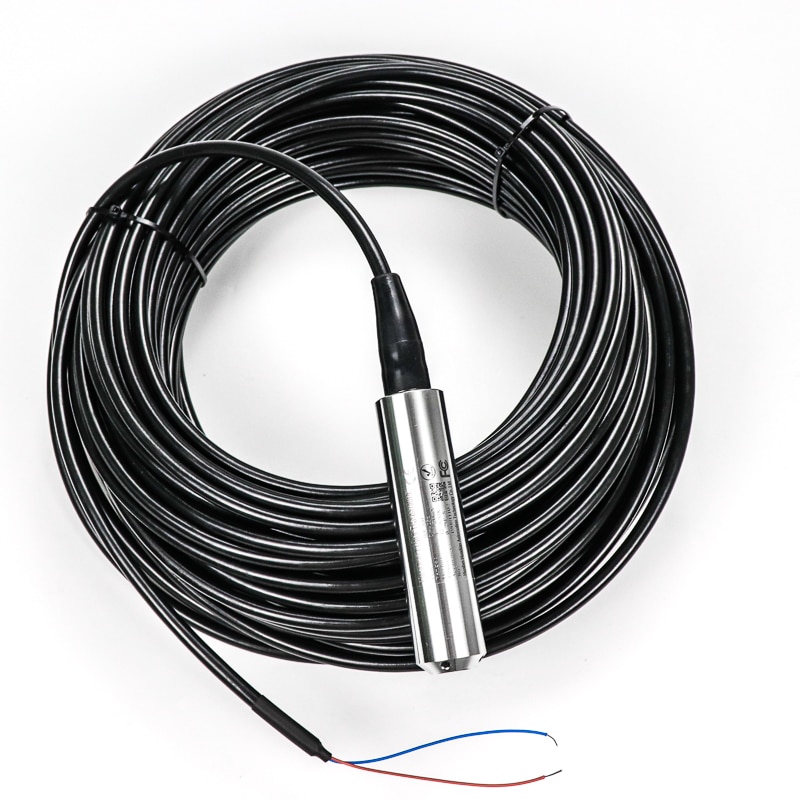

• Product name: Submersible level sensor
• Power supply: 3-5VDC,12-28VDC
• Overload pressure: 300%F.S
• Output signal: 4-20ma,1-5V,0-10V,RS485
• Model Number: HDL300
• Measuring range: 1-500m
• Measuring method: Sank in probe the bottom of the liquid
• Measuring medium: Non-corrosive liquid

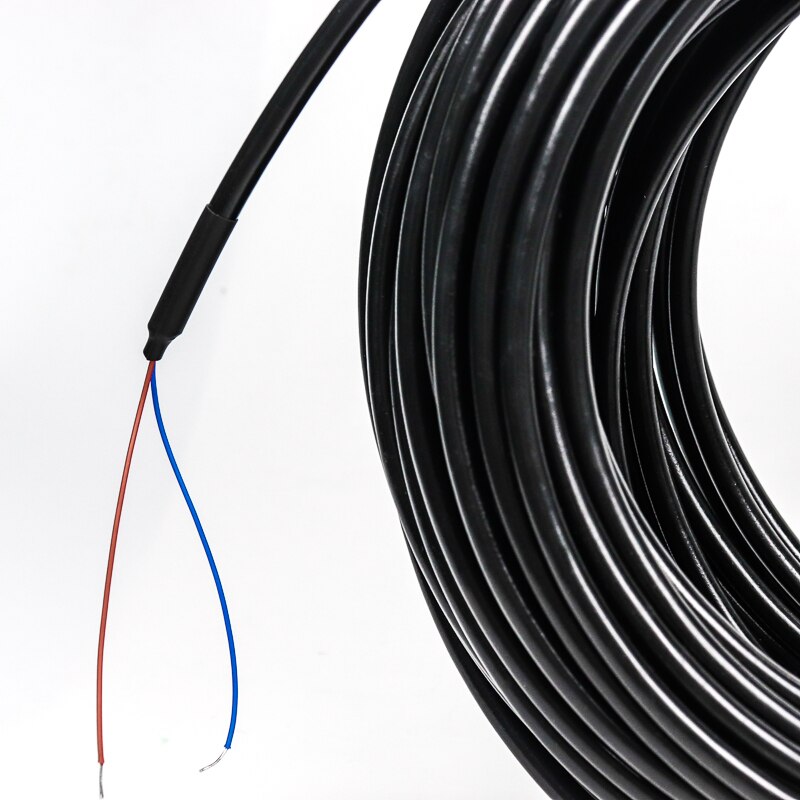

• Material: 304 probe ,Core 316 diaphram ,shell 304 , rubber wire
• Linearity: 0.03%
• Certificates: ISO9001 CE RoHs FCC
• Accuracy: 0.1%F.S,0.25%F.S,0.5%F.S
