Specifications:

• Working temperature: 0~500℃
• Warranty: 2years
• Sensitivity Temperature Drift: ±0.03%F.S/℃
• Response time: ≤50MS

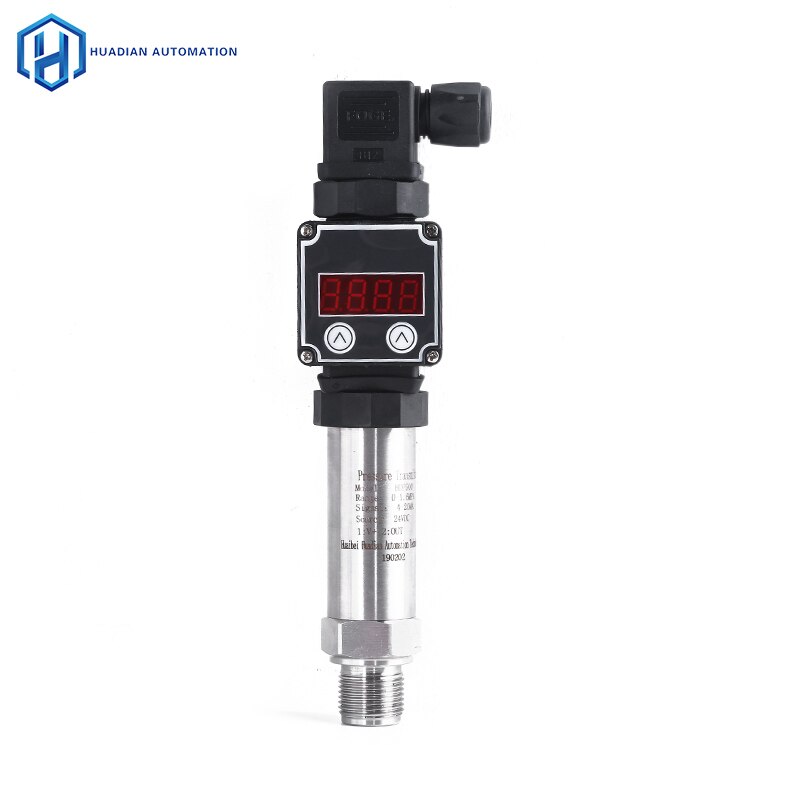

• Product Name: high temperature pressure sensor
• Power Supply: 12-36VDC
• Output signal: 4~20mA,1~5V,0~10V,RS485
• Model Number: HDP501
• Measuring Media: water,gas,oil
• Max Measuring Range: 400 Bar & Above
• Long-term Stability: ≤0.2%F.S/year
• Linearity: 0.03%
• Installation Mode: M20*1.5(thread),1/2 NPT,G 1/2,Others
• Certificate: ISO9001 CE RoHS FCC
• Accuracy: 0.1%,0.2%
